Infrastructure

Chandan Foundry keeps pace by updating the manufacturing facilities, by inducing the latest technology like CAD/CAM, fully supported by conventional facilities with various VMCs and CNCs, Testing Laboratory. Mico and Macro Test along with Hardness Testing and Magna Flux for crack detection.

Production Capacity

1) Melting & moulding : 500 m.t. per month
2) Present utilized : 300 m.t. per month
3) Spare capacity : 200 m.t. per month (can be extended upto 800 m.t. per month on requirement).
Infrastructure

Machineries

1) Pattern shop : Regular arrangement with a standard pattern shop facility for making wooden and metal patterns.
2) Machine shop
: regular arrangement with a standard machine shop containing various vmc’s & cnc’s for proof machining facility which includes :-
  • VMC’S
  • CNC’S
  • 14 Feet Lathe
  • Lathe Turning Centre
  • Radial Drilling Machine 40mm
  • Radial Drilling Machine 38mm
  • Balancing Machine 50kg
  • Balancing Machine 100kg
  • Milling Machine

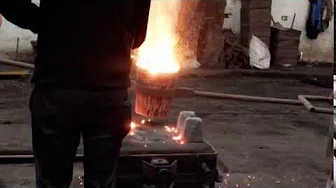

3) Melting : 1 nos. 30” dia cupola furnace :- 3 metric tonnes per hour
: 1 nos. Electric furnace :- 300kg per hour
: 1 nos. Electric furnace :- 500kg per hour
4) Moulding : mechanised sand plant & knockout system 5 m.t./ h capacity.
: mould track system
: simultaneous jolt squeeze moulding
: jolt / squeeze & stripper moulding machine
: dry sand hand moulding system
: gas burners for drying [fired till start of pouring.]
: intensive sand preparation screening & in sand mixer machine, (2 nos spare)
: no bake mould system.
: co2 mould system operating through co2 manifold system
: shell moulding system (21 x 19 inch)
5) Pattern shop : 7/5 WATER COOLED 2 NOS.
: 15 T AIR COOLED 2 NOS.
6) Core system : screening and mixer machines.
: oil sand core baking capacity 8 m.t. per unit (4 units).
: no back core system
: co2 core system prepared through co2 manifold system.
: shell core system (12 x 15 inch)
7) FETTLING : INDABRATOR / WHEELABRATOR
: oil sand core baking capacity 8 m.t. per unit (4 units).
: SHOT BLASTING MACHINE 72” DIA.
: BENCH GRINDERS.
: PEDESTAL GRINDERS.
: FLEXIBLE GRINDERS.
: SWING GRINDERS.
: COATING/ PAINTING SHOP
